VoyageMaster VDR IV G3
Designed to power the future.
Commercial

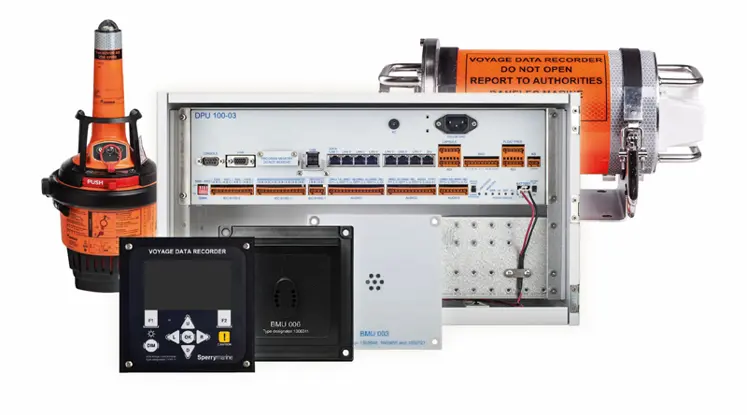

The Latest in VDR Technology
The latest VoyageMaster VDR IV G3 introduces a new hardware platform, enhanced recording capabilities, expanded connectivity options and an updated service philosophy. Developed to address evolving vessel requirements and increasing data volumes, the third-generation VDR IV combines new processing technology, advanced video integration and greater installation flexibility while meeting compliance with the latest performance standards and cybersecurity regulations.
Certified Excellence
Voyage Data Recorders as the maritime industry´s "black box", play a critical role in capturing and preserving navigational, communication and operational data. The VoyageMaster VDR IV G3 ensures compliance with international maritime regulations and delivers secure access to essential operational data, supporting effective operational review and detailed incident analysis.
Ready for Demanding Challenges
Read more about the key features and benefits of the new VoyageMaster VDR IV G3:
A fully redesigned motherboard with fewer components improves reliability, while a powerful new processor enables seamless handling of high-bandwidth data streams and demanding applications.
Features
- Redesigned motherboard
- Reduced amount of components
- New Data Processing Unit (DPU)
- Increased processing performance
- Support for high-bandwidth data streaming
Benefits
The redesigned hardware architecture reduces the number of components and therefore reduces potential points of failure. Combined with a more powerful processor, the VDR supports demanding applications and increasing data volumes, including high-bandwidth data streaming requirements.
The Voyage Master VDR IV G3 comes with an expandable battery concept that allows an additional battery pack to be installed within the Data Acquisition Unit (DAU).
Features
- Optional battery expansion
- Increased battery capacity
- Support for higher data loads
- Support for long distance signal transmission
Benefits
The additional battery capacity supports higher data loads end enables signal transmission across longer cable distances. This provides greater flexibility for vessel installations and supports applications that require increased power capacity.
Recording video alongside voyage data has become increasingly important for operational review and incident analysis. The VoyageMaster VDR IV G3 expands video integration capabilities through dedicated video interfaces and enhanced playback functionality.
Features
- IP Video Interface Unit (IPVI)
- Capture of advanced video inputs
- Capture of advanced audio inputs
- Integrated playback functionality
- Simultaneous playback of video and voyage data
Benefits
The IP Video Interface Unit enables the capture of advanced video inputs in addition to standard voyage data. Using the supplied playback software, operators can replay recorded video together with the corresponding voyage data, allowing all relevant information to be reviewed within a single playback environment.
The VoyageMaster VDR IV G3 introduces new connectivity options designed to support increasingly complex vessel architecture and modern connectivity requirements.
Features
- Optical fibre connectivity
- Vessel Remote Server (VRS)
- Gateway connectivity
- Dual-bridge support
- Long-distance cable connections
- Pre-configured server options supporting plug and play installations
Benefits
Optical fibre connectivity supports long-distance cable connections and enables more flexible installation layouts. The dual-bridge architecutre allows two bridge locations to be connected to a single DIU, supporting vesses configurations where multiple bridges are required. The new Vessel Remote Server and Gateway options enable connectivity between different areas of the vessel and support cloud-based connections where required, providing additonal flexibility for modern vessel operations.
As vessel systems become increasingly connected, secure handling of operational data is essential. The VoyageMaster VDR IV G3 has been developed in accordance with current maritime cybersecurity requirements.
Features
- End-to-end encryption
- Secure onboard data transfer
- Compliance with current Ethernet standards
- Compliance with IACS UI 27 requirements
- DNV cybersecurity type approval
Benefits
The system protects data during transmission through end-to-end encryption and secure communication mechanism. These capabilities support the secure transfer of data within the vessel as well as to shore-based services, while helping operators comply with current cybersecurity requirements and industry standards.

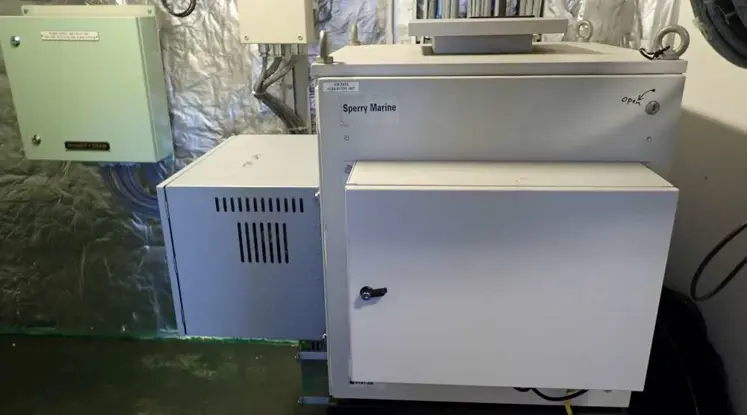

VDR Retrofits
Many vessels continue to operate with ageing Voyage Data Recorder systems. As operational requirements evolve and legacy components become obsolete, vessel operators may need to upgrade their VDR solution.
The VoyageMaster VDR IV G3 is designed for seamless retrofit installations and provides a practical upgrade path through conversion kits, updated hardware, flexible connectivity options, and compliance with applicable regulations.

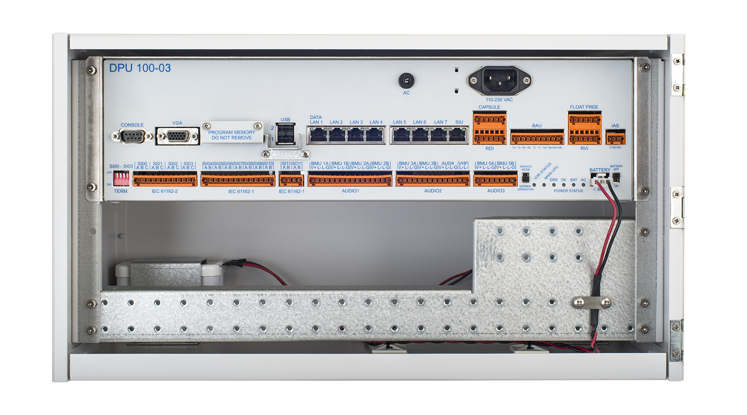

Fast Spare Parts Support
VoyageMaster VDR IV G3 SWAP technology enables rapid hardware replacement by simply swapping the memory card from the failed unit into the new hardware. All software, settings, and configurations are instantly restored, minimizing downtime and eliminating the need for re-programming.
Key Highlights
- SWAP Technology
- Time Savings / faster replacement options
- Improved spare parts availability
- Simplified service and maintenance planning
Onboard Spare Part Kits
To support onboard spare parts requirements issued by maritime authorities and applied by various naval operators, Sperry Marine offers dedicated onboard spare parts kits. For further information regarding kit availability or retrofit options, please contact Sperry Marine.
- Data Processing Unit (DPU)
- Bridge Control Panel
- Indoor Microphone
- Outdoor Microphone
Global Service and Support
Keeping you VDR operational is critical for compliance and vessel operations. Sperry Marine´s global service network provides installation, maintenance, Annual Performance Testing (APT), repairs and support to help keep your vessels navigate safely and efficiently.
